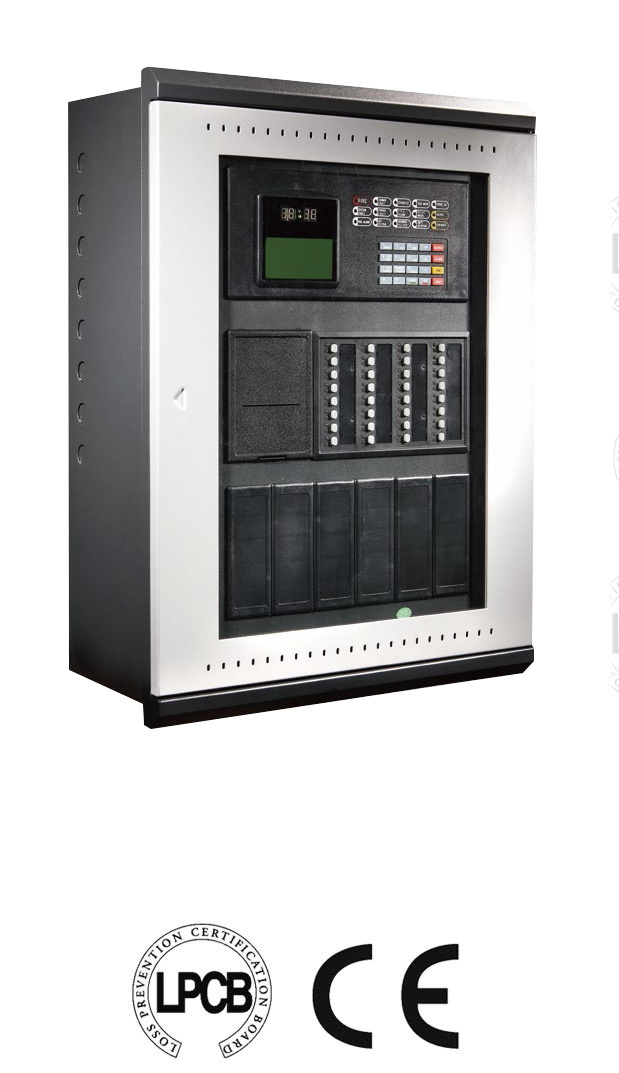

GST-200N: Addressable 2 loops fire alarm control panel:
Feature
☆ Max. 30 zones. Each zone has its own alarm and fault/disable
indicator and a label
☆ Single loop panel capacity 235 addressable devices
☆ 2-loop panel capacity 477 addressable devices
☆ Compatible with GST intelligent and digital products
☆ 8X18 characters LCD screen
☆ 15 LEDs to display important information
☆ Non-Volatile memory ensures no loss of data even if power
supply is accidentally removed
☆ Wide range power supply
☆ Sounder strobe output provides 0.5A24V load, compatible with
GST conventional sounders
☆ RS232 interface enables communication with PC
☆ RS485 or CAN interface enables networking

GST-IFP4 Addressable 6 loops fire alarm control panel:
Feature
☆ 7-inch Touch Screen, 800 x480 resolution
☆ Support 1-6 loops in Class A style (additional battery box is
required if 6 loops fully loaded)
☆ 242 addressable devices per loop mixing various types of
devices, Max. 1452 addresses
☆ Max 8 ZCP panels ,each panel with individual programmable
buttons & LED indicators
☆ Multi-language support
☆ Graphic Cause and Effect programing AND,OR, NAND,NOR
logic, support virtual variable
☆ Auto learn panel hardware configuration and loop devices,
device type mismatch notice
☆ Detector chamber dirty level reporting, adjustdirty level
threshold
☆ History records of 100,000 events
☆ “Walk test", silent or audible
☆ Type A Type B Positive Alarm Sequence
☆ E-mail notification
☆ USB port for loading project database and firmware update
☆ Programing via PC or panel keypad and touch screen
☆ Support uSB dongle for securing project database

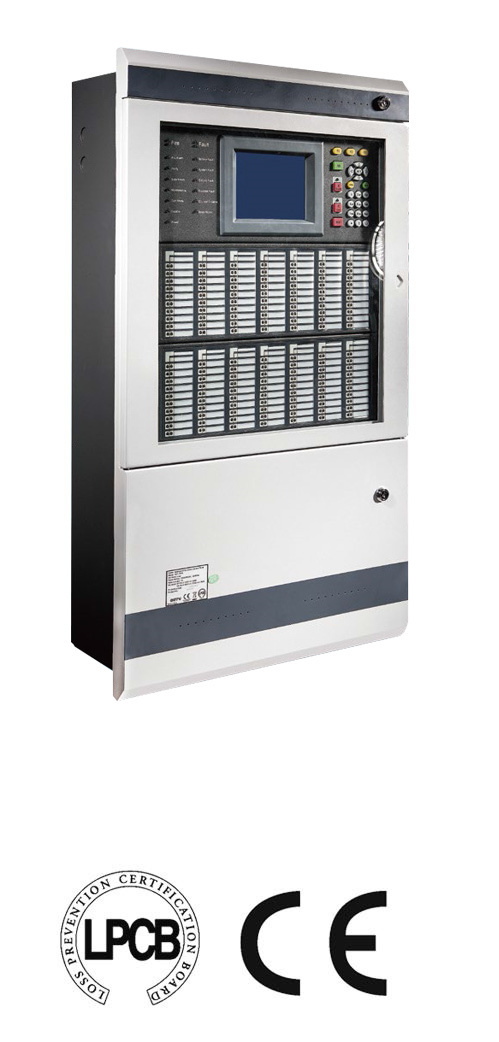

GST-IFP8: Addressable 8-10 loops fire alarm control panel:
Feature
☆ Max.999 zones, 140 of which has its own alarm
and fault/disable LEDs and a label
☆ Maximum 8 Class A loops, each with up to 242 addressable
devices
☆ 15*40 LCD screen, assisting the 17 LEDs to display important
information
☆ Compatible with full series of GST EN addressable and digital
products
☆ Non-Volatile memory ensures not loss of data even if power
supply is accidentally removed
☆ Sounder strobe output provides 1A/24V load, capable
connecting conventional sounders
☆ RS232 interface enables communication with PC
☆ RS485 interface enables networking
☆ RS485 interface for connecting repeaters
